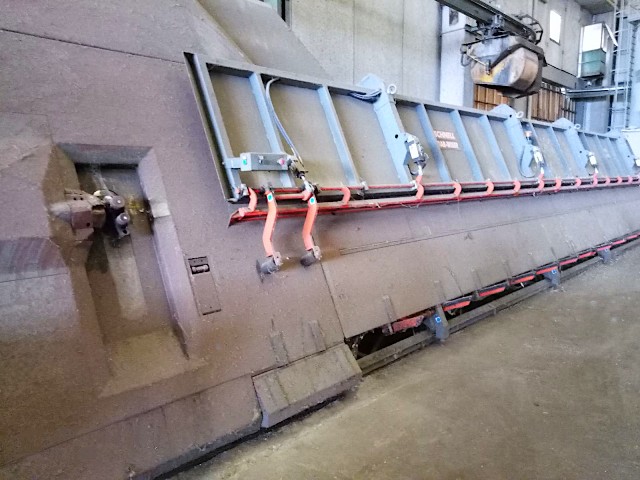

- Bi-directional stirrup bender, cut to size and bar shaping machine from rebar up to #7.
- BAR-WISER 22 S model, by SCHNELL. year of construction 2008.
- About 1700 work hours
- Machine run by electro-pneumatic equipment.
- Compressed air is required to work the machine.
- Control console with industrial computer “BAR WISER CONTROL”
- Schnell software for machine management and for the programming of the production orders

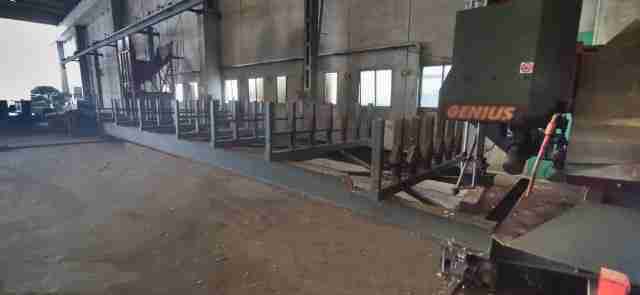

- Genius automatic bar loader
- Traversing forge. Storage of bars moving on rails. By means of the transversal movement it is possible to align the bars to be shaped/cut to the bar input group of the Bar Wiser 22 S where they will be loaded up by the automatic loader Genius
- Semi-automatic cycle for shaped wires with bends on both ends The equipment is completed by: the complete series of pins and spindles for all workable diameters, the use and maintenance manuals, the system diagrams book.
TECHNICAL DATA:
- 1 bar working capacity up to #7, 2 bar working capacity up to #5;
- Max pulling speed 100 m/min;
- Max bending speed 900 °/s;
- Installed power 34 kW;
- Max absorbed power 20 kW;
- Average power consumption: 2 kWh.
Machine with very few working hours, controlled by a single operator who is able to make all possible shapes,
without limits.
Multifunctional center that all shaping centers and/or concrete precast plants should have.
An opportunity not to be missed
